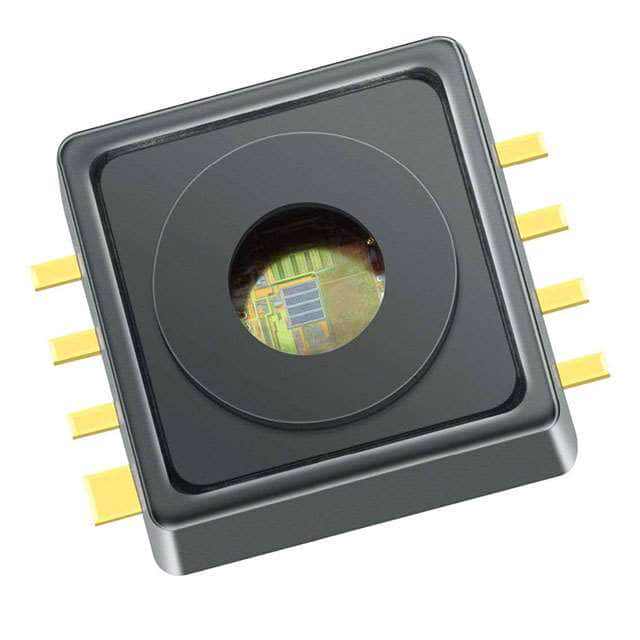

  • KP215F1701

  • KP215F1701

    Analog Absolute Pressure Sensor

    Description:

    The KP215F1701 is a miniaturized Analog Manifold Air Pressure Sensor IC based on a capacitive principle. It is surface micromachined with a monolithic integrated signal conditioning circuit implemented in BiCMOS technology. The sensor converts a pressure into an analog output signal. The calibrated transfer function converts a pressure of 10 kPa to 115 kPa into a voltage range of 0.4 V to 4.65 V. The chip is packaged in a “green” SMD housing. The sensor has been primarily developed for measuring manifold air pressure, but can also be used in other application fields. The high accuracy and the high sensitivity of the device makes it a perfect fit for advanced automotive applications as well as in industrial and consumer applications.

    Summary of Features:

    • .

    • High precision pressure sensing (± 1.4 kPa)

    • .

    • Ratiometric analog output

    • .

    • Large temperature range (-40 °C to 140 °C)

    • .

    • Broken wire detection

    • .

    • Clamping

    • .

    • “Green” 8 pin SMD housing

    • .

    • Automotive qualified


    • 0.00
      0.00
Product Description

Analog Absolute Pressure Sensor

Description:

The KP215F1701 is a miniaturized Analog Manifold Air Pressure Sensor IC based on a capacitive principle. It is surface micromachined with a monolithic integrated signal conditioning circuit implemented in BiCMOS technology. The sensor converts a pressure into an analog output signal. The calibrated transfer function converts a pressure of 10 kPa to 115 kPa into a voltage range of 0.4 V to 4.65 V. The chip is packaged in a “green” SMD housing. The sensor has been primarily developed for measuring manifold air pressure, but can also be used in other application fields. The high accuracy and the high sensitivity of the device makes it a perfect fit for advanced automotive applications as well as in industrial and consumer applications.

Summary of Features:

  • .

  • High precision pressure sensing (± 1.4 kPa)

  • .

  • Ratiometric analog output

  • .

  • Large temperature range (-40 °C to 140 °C)

  • .

  • Broken wire detection

  • .

  • Clamping

  • .

  • “Green” 8 pin SMD housing

  • .

  • Automotive qualified
